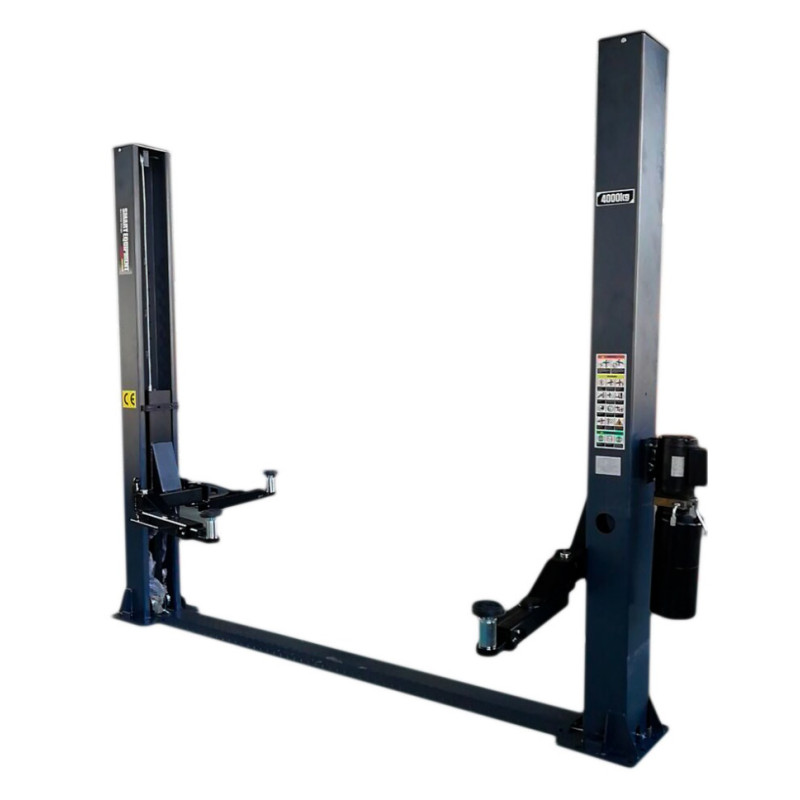

SMART EQUIPMENT JH-4000F 2-column electro-hydraulic lift 4 tons with mechanical release

Technical specifications:

Maximum load capacity - 4000 kg;

Working principle - electro-hydraulic;

Synchronization - hydraulic cable;

Lifting height - 1800 mm + the possibility of obtaining an additional 100 mm height for various car models with the help of adjustment screws.

Front lifting struts - 2 stages;

Rear lifting struts - 2 stages;

Length of lifting supports from 840 to 1280 mm;

Automatic locking of the lifting post position;

Manual height release;

Power of the hydraulic pump - 2.2 kW;

Total width of the elevator - 3400 mm;

Distance between columns - 2810 mm;

Column height - 2715 mm;

CE certificate

Color - gray;

Weight - 580 kg;

Installation conditions:

Power source - 400V, 50Hz. Connection cable 5x2.5 mm2. Separate automatic fuse min. 16A (in accordance with applicable electrical safety requirements).

Application surface - smooth, hard base with a load of 400 kg;

Surface deviation: +/- 0.00 0;

Hydraulic oil - 10 liters;

Hydraulic oil class - HLP32;

For internal work only;

Working temperature - from -10 to +40 ° C;
