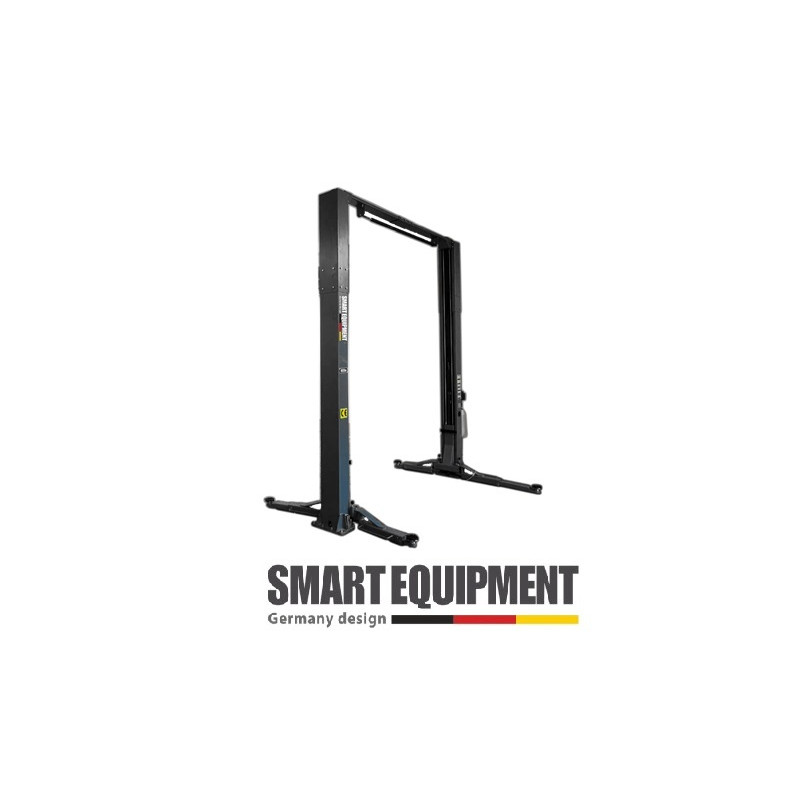

2-column electro-hydraulic lifter with upper beam - 4000 kg
€1,615.00
Tax Included
1334,71 tax excl.
Monthly payment from 44.49€
JH4000C
DELIVERY:
Venipak kurjers - €181.5 tax incl.
Saņemt veikalā. - Free.
Out-of-Stock2 column electrohydraulic lifter - 4000 kg
A high-quality lift suitable for every service
The set includes lifting adapters 55 and 127 mm;
The lift is ideal for permanent repairs on cars and SUVs. The elevator's synchronization cables and hydraulic system are connected through the top - this significantly extends the service life of the elevator, since the elevator's main systems are not vulnerable to moisture, dirt and corrosion. A clean passage between the elevator columns ensures fantastic working comfort and ergonomics.
Mechanical height locks - a guarantee of reliability!
Security policy(edit with the Customer Reassurance module)
Delivery policy(edit with the Customer Reassurance module)
Return policy(edit with the Customer Reassurance module)
A quality elevator for every service
Complete with lifting adapters 55 and 127 mm;
The lift is ideal for permanent car and SUV repairs. The air connection between the lifter's synchronization cables and the hydraulic system greatly increases the life of the lifter, as the main lifter systems are not affected by moisture, dirt and corrosion. The clean transition between the lifting columns ensures fantastic working comfort and ergonomics.
Mechanical height lock - a guarantee of reliability!
Specifications:
Maximum load capacity - 4000 kg;
The principle of operation is electro-hydraulic;
Synchronization - hydraulic cable;
Lifting height - 1990 mm;
Front lifting racks - 2 steps;
Rear lifting racks - 2 steps;
Lifting stand (front) length from 630 to 1280 mm;
Length of lifting supports (rear) from 630 to 1280 mm;
The minimum height of the lifting platform is 100 mm;
Automatic locking of the lifting stand position;
The power of the hydraulic pump is 2.2 kW;
Total width of the elevator - 3455 mm; The distance between the columns is 2865 mm;
Column height - 3434 mm;
Lifting height - 3700mm;
The color is blue;
CE certificate;
Installation conditions:
Power source - 230 V, 50 Hz. Connection cable 3x2.5 mm 2. Separate circuit breaker min. 16A (in accordance with applicable electrical safety requirements).
Surface of use - smooth, hard base with a load capacity of 3500 kg;
Surface deviation: +/- 0.00 0;
Hydraulic oil - 10 l;
Hydraulic oil class - HLP32;
For internal work only;
Working temperature - from -10 to +40 0 С;
The warranty period is 12 months.
JH4000C
Specific References
No customer reviews for the moment.
2 column electrohydraulic lifter - 4000 kg
A high-quality lift suitable for every service
The set includes lifting adapters 55 and 127 mm;
The lift is ideal for permanent repairs on cars and SUVs. The elevator's synchronization cables and hydraulic system are connected through the top - this significantly extends the service life of the elevator, since the elevator's main systems are not vulnerable to moisture, dirt and corrosion. A clean passage between the elevator columns ensures fantastic working comfort and ergonomics.
Mechanical height locks - a guarantee of reliability!
